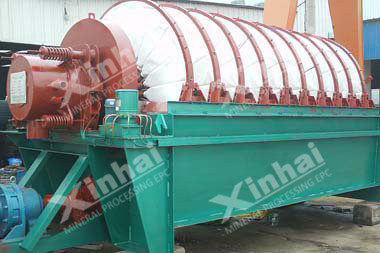

Vacuum Filter

Advantages

• Large filtering area, large capacity

• Full dehydration

• Markedtechnical and economic effect

• Small area taken, easy to manufacture and strong adsorption ability

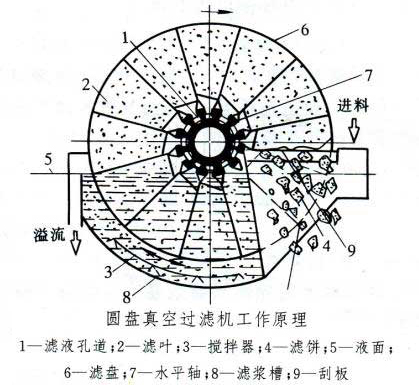

Work Principle

Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate. Filter cake comes out from slime hopper receiving spray washing. Filter cake falls into the tank by the pressure from the wind and scraper.

It can be used for floating and dewatering in clean coal and fine materials like tailings, and it can be also used in metallurgy, chemical, petroleum, sewage treatment, and other aspects of the solid-liquid separation.

Technical Parameters

Model		PG18-4	PG27-6	PG39-4	PG58-6	PG78-8	PG97-10	PG116-12
Filter Area (m2)		18	27	39	58	78	97	116
Quantity of Filter Disc		4	6	4	6	8	10	12
Diameter of Filter Disc (mm)		1800	1800	2700	2700	2700	2700	2700
Rotating Speed of Filter Disc (r/min)	1	0.135 ~0.607	0.135 ~0.607	0.135 ~0.607	0.15~0.67	0.15~0.67	0.148~0.66	0.148~0.66
	2	0.254~1.14	0.254~1.14	0.254~1.14	0.254~1.14	0.254~1.14	0.285~1.285	0.285~1.285
	3						0.44~1.98	0.44~1.98
Rotating Speed of Agitator (r/min)		60	60	60	60	60	60	60
Main Drive Motor	Model	YCTL132-4B	YCTL132-4B	YCT160-4A	YCT160-4B	YCT160-4B	YCTL180-4A	YCTL180-4A
	Power (kW)	1.5	1.5	2.2	3	3	4	4
	Rotating Speed (r/min)	1230~125	1230~125	1250~125	1250~125	1250~125	1250~125	1250~125
Drive Motor of Agitator	Model	Y90L-4	Y90L-4	Y90L-4	Y100L1-4	Y100L1-4	Y112M-4	Y112M-4
	Power (kW)	1.1	1.1	1.5	2.2	2.2	4	4
	Rotating Speed (r/min)	1440	1440	1440	1440	1440	1440	1440
Vacuum Pump	Model	SZ-4	2YK-27	SZ-4	SZ-4	SZ-4	2YK-110	2YK-110
	Quantity	1	1	1	2	2	1	1
Blower	Model	SZ-2	SZ-2	SZ-2	SZ-3	SZ-3	SZ-3	SZ-3
	Quantity	1	1	1	1	1	1	1
Weight (kg)		3500	4500	6000	8000	9000	10000	12000
Overall Dimensions: (LXWX H) (mm)		2820X2355 X2295	3820X2355 X2295	3015X3275 X3275	3930X3355 X3275	4730X3355 X3275	5530X3355 X3275	6330X3355 X3275
