BF Flotation Cell

BF Flotation Cell
Introduction
A mechanical agitation type floatation cell unit with self-air suction and combination of slurry suction/no slurry suction
Effective Volume
0.15~ 24m3
Product Improvement
BF flotation cell has two types: type I and type II. Type I is improved as suction cell referring to model SF; type II is improved as direct flow cell referring to model JJF. Both are briefly called model BF.

Advantages

  • Large air suction volume, low energy consumption

  • Each tank with air suction, slurry suction and floatation function does not need any accessory equipment to form floatation circle, which is convenient for process flow changing

  • The reasonable slurry circulation minimizes coarse sand sediments

  • Auto-control device of slurry volume, convenient adjustment

Work Principle

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

Product Structure

 BF floatation cell

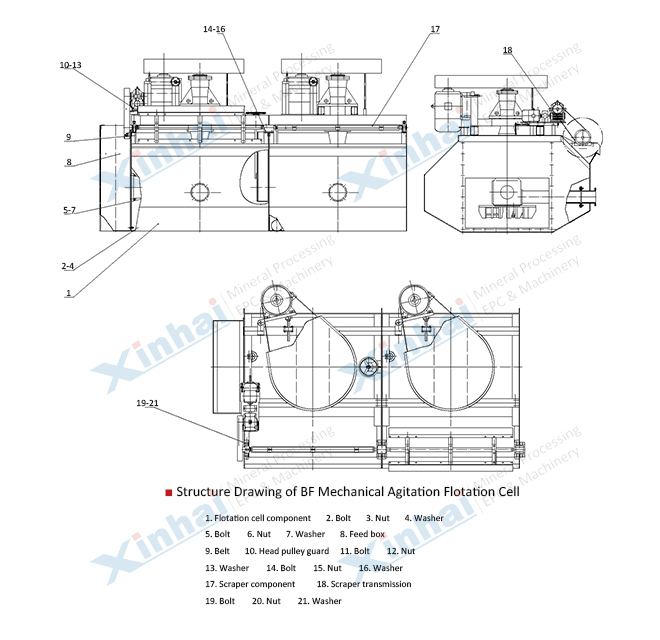

BF floatation cell is composed of impeller, cover plate, main shaft, the center tube, and tank etc.. The impeller is installed on tank main beam driven by V-belt and motor. The impeller is composed by double cones that produce strong slurry lower circulation. In addition, slurry auto-control device adjusts liquid surface

BF flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to roughing and cleaning of large and middle scale floatation plants.

Technical Parameters

Model Effective
Volume
(m3)
LXWXH
(mm)
Impeller
Diameter
(mm)
Circular Velocity of Impeller
(m/s)
Air Suction Amount
(m3/m2.min)
Motor Model Motor
Power
(kW)
Capacity
(m3/min)
Single Tank Weight (kg)
BF-0.15 0.15 550X550X600 200 6 0.9-1.05 Y112M-6 2.2 0.06~0.16 270
BF-0.25 0.25 650X600X700 250 Y100L-6 1.5 0.12~0.28 370
BF-0.37 0.37 740X740X750 286 7.2 Y90L-4 0.2~0.4 470
BF-0.65 0.65 850X950X900 300 7.35 0.9~1.10 Y132S-6 3 0.3~0.7 932
BF-1.2 1.2 1050X1150X1100 450 7.02 Y132M2-6
Y132M1-6
5.5
4
0.6~1.2 1370
BF-2.0 2 1400X1450X1120 500 7.5 Y160M-6 7.5 1.0~2.0 1750
BF-2.8 2.8 1650X1650X1150 550 8.06 Y180L-8 11 1.4~3.0 2130
BF-4.0 4 1900X2000X1200 650 8 Y200L-8 15 2.4 ~4.0 2585
BF-6.0 6 2200X2350X1300 700 7.5 Y225S-8 18.5 3.0~6.0 3300
BF-8.0 8 2250X2850X1400 760 Y225M-8 22 4.0 ~8.0 4130
BF-10 10 2250X2850X1700 7.52 5.0 ~10 4500
BF-16 16 2850X3800X1700 850 8.7 Y280S-8 37 8.0 ~16 8320
BF-20 20 2850X3800X2000 Y280M-8 45 10.0 ~20 8670
BF-24 24 3150X4150X2000 920 Y315S-8 55 12.0 ~24 8970
