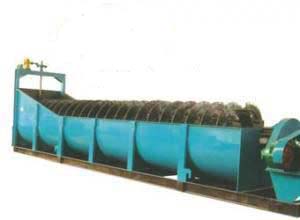

Submerged Spiral Classifier

Submerged Spiral Classifier
Introduction
Classification equipment---the spiral of overflow end is completely immersed below liquid level
Capacity
50~1410 t/d
Product improvement
An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.

Work principle

Fine ore pulps are fed into water tank through feeding opening located in the center of settling zone. Beneath the inclined water tank is the ore pulp classification zone where ore pulps are stirred by low-speeded impellers. Fine ore particles are lifted up and then spilled out the overflow opening; coarse ore particles precipitate down to tank bottom and are discharged via discharge opening.

Product application

Submerged spiral classifier with the spiral of overflow end completely immersed below liquid level is applied in classifying ore with particle size 0.15~0.07mm

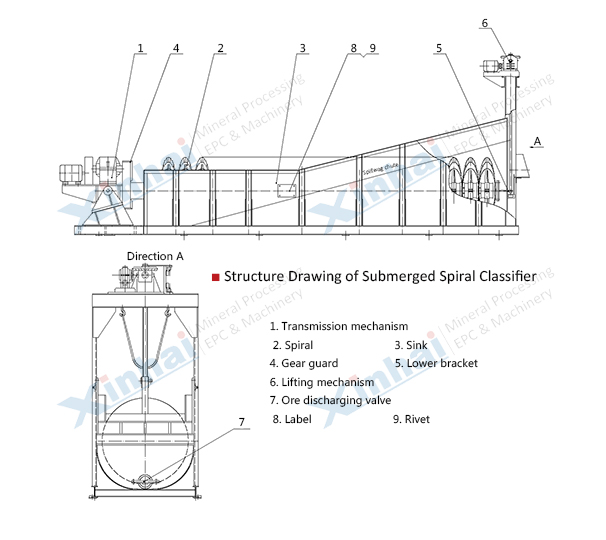

Product Structure

Technical Parameters

Please contact us if you want to choose the most suitable high dam spiral classifier, and our experts will give you advice

Type Model Rotating Speed of Spiral (r/min) Capacity of Sand Return (t/d) Capacity
of
Overflow
(t/d)
Spiral
Diameter
(mm)
Spiral
Length
(mm)
Slope
of
Water
Tank
Drive
Motor
Model
Drive
Motor
Power
(kW)
Lifting
Motor
Model
Lifting
Motor
Power
(kW)
Weight
(kg)
SubmergedSingle
Spiral
Classifier
FLC-1000 2.5~7.4 160~700 50-260 Φ1000 8397 14 ~18 Y132M2-6 5.5 Manual
driven
5225
FLC-1200 5~7 1150~1640 120 Φ1200 8400 Y160M-6 7.5 Y90L-4 1.5 9583
FLC-1500 2.5 ~6 1140~2740 185 Φ1500 10500 Y100L1-4 2.2 14226
FLC-2000 3.6~5.5 3240~5940 320 Φ2000 13000 Y160L-4 15 Y100L2-4 3 27753
FLC-2400 3.6 6800 455 Φ2400 14130 Y200L1-6 18.5 Y112M-4 4 32467
FLC-3000 3.2 11650 705 Φ3000 14300 Y200L-4 30 Y112M-4 4 43500
SubmergedDouble
SpiralsClassifier
2FLC -1200 3.8 ~6 1770~2800 240 Φ1200 8040 Y160M-6 7.5X2 Y100L1-4 2.2X2 19610
2FLC-1500 2.5 ~6 2280~5480 370 Φ1500 10500 27450
2FLC-2000 3.6,5.5 7780~11880 640 Φ2000 12900 Y200L2-6,
Y200L-4
22;30 Y100L2-4 3.0X2 50621
2FLC-2400 3.67 13700 910 Φ2400 14130 Y25S-4 37 Y112M-4 4.0X2 65283
2FLC-3000 3.2 23300 1410 Φ3000 14300 Y225M-4 45 Y112M-4 4.0X2 84900
