Wear – Resistant Slurry Pump

Wear – Resistant Slurry Pump
Product Introduction
A slurry pump for conveying pulp with concentration below 65%
Capacity
Flow≤1500m3/h
Product Improvement
Slurry pump impeller and the casing are lined with Xinhai high wear-resistant rubber ensuring that the pump body is not subject to wear. In the same project, the service life of Xinhai slurry pump is 2 times longer than other metal pump life reaching the international top quality. The rubber liners wear index has reached 128%.

Advantages

  • Wear – resistant rubber as liners prolongs the service life by 2-4 times

  • Internal rubber liners with small specific gravity can effectively improve the impeller speed. Maximum flow rate than other slurry pump can improve the efficiency of the whole 10-20%, overall efficiency increased more than 30%.

  • Small specific gravity wet parts, convenient maintenance, low noise; reduce the number of repair personnel and the operational maintenance cost

  • Smooth wet parts make operation more stable

3D Exploded Video

Every single part and working principles of Wear – Resistant Slurry Pump are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

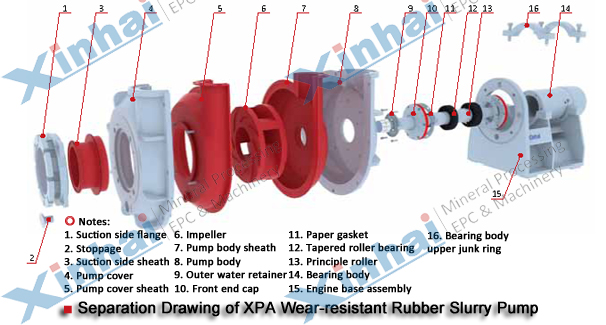

Product Structure

Wear-resistant Rubber Slurry Pump

The main components of wear-resistant slurry pump includes impeller, motor, sheath etc. Sheath and impeller is made of Xinhai wear resistant rubber. The auxiliary suspenders simply remove the pump shell, and are convenient for maintenance.

Application

Xinhai wear-resistant slurry pump is suitable for processing the high abrasion slurry or the material containing solid particles.

Metal smelting plant: convey slurry

Sand plant: transporting and conveying sand and gravel, feeding sand and water all types of classification and dewatering plants

Coal preparation plant: classifying, screening and conveying heavy medium, conveying coal pulp

Ceramics and glass factory: porcelain clay and sandstone transportation, feeding hydrocyclone and effluent disposal etc.

Steel works: conveying slurry, rust and corrosive liquid etc.

Irrigation systems and dredging: silt removal in dams and river bed, sand classifying

Note: please specify if applied where oil and chemicals are contained


Technical Parameters

Model & Spec. Flow
(m3/h)
Max. Head
(m)
Rotating Speed (r/min) Max. Rated Power (kW) Max. Efficiency
(%)
Impeller
Diameter
(mm)
Weight
(kg)
Overall Dimension (mm)
XPA 50/50 20 ~60 38 800~2400 22 51 200 156 725X482X491
XPA 80/80 30~100 45 600~2100 45 53 256 326 915X590X595
XPA 100/100 60~160 50 600~1600 75 57 340 440 999 X 648 X 660
XPA 150/125 100~260 47 400~1400 110 63 372 608 1280X736X758
XPA 200/150 160~450 47 450~1200 132 69 433 736 1313X788X822
XPA 250/200 300~900 46 400~1200 250 78 454 1250 1600X812X956
XPA 300/250

400~1500

45 300~900 600 73 610 1956 1698X966X1083
