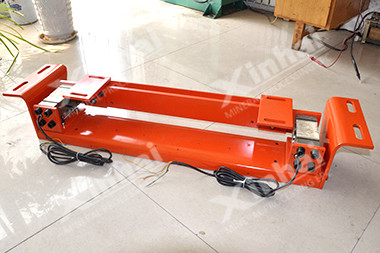

Electronic Belt Scale

Advantages

• The system can automatically control the feeding quantity of belt machine according to the preset flow rate.

• High efficiency and energy saving, durable and wear-resistant

• The system reserves a standard communication interface. That is convenient for production management and scheduling.

Application

The displayed part adopt the high-grade large size touch screen to replace the traditional digital tube and liquid crystal module which has friendly man-machine interface and rich display contents. This product can fully replace the traditional weighting totalizer instrument.

Technical Parameters

Model	Suitable Belt Conveyor	Load (kg)	Setting Angle	Belt Speed (m/s)	Weight (kg)
PDC500	TD500	0 ~300	≤ ±20。	≤ 3	40.5
PDC650	TD650	0 ~300	≤ ±20。	≤ 3	43.6
PDC800	TD800	0 ~300	≤ ±20。	≤ 3	47.8
PDC1000	TD1000	0 ~300	≤ ±20。	≤ 3	53.5
PDC1200	TD1200	0 ~300	≤ ±20。	≤ 3	59.6
