Air Lifter

Air Lifter
Product Introduction
A slurry transporting equipment by compressed air
Lifting Head
3-5m
Product Feature
No moving part

Advantages

  • Scientific and reasonable design, decrease the damage to carbon

  • High efficiency, the time of lifting carbon is 0.5~1 hours

  • Small volume, it is convenient to install on leaching agitation tank or adsorption tank; convenient operation and maintenance

Work Principle

Pressure air is inflated into air lifter, which reduces the air density of ore pulp pipe and causes the pressure difference between pipe and tank. By the action of pressure, ore pulps in tank are lifted by air lifter.

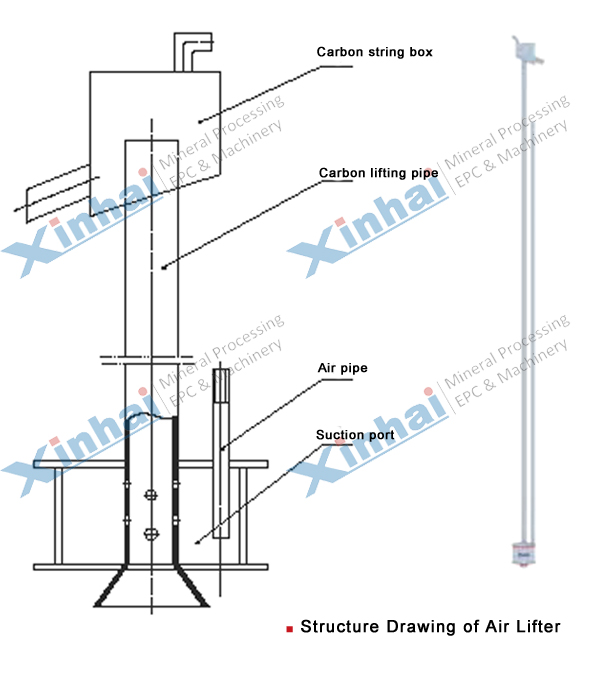

Product Structure

Air Lifter

Technical Parameters

ModelCarbon adsorption pipe specificationAir pipe specificationApplication range
KT60 Φ50×2.5 DN20 SJ2.0×2.5,SJ2.5×2.5,SJ2.5×3.15,SJ3×3.15,SJ3×3.5,SJ3.15×3.55
KT100 Φ108×4 DN25 SJ3.55×4,SJ4×4.5,SJ4.5×5,SJ5×5.6,SJ5.5×6,SJ7.5×8,SJ8×8.5
KT125 Φ133×4 DN32 SJ8.5×9 ,SJ9×9.5,SJ10.5×11
KT150 Φ159×4 DN40 SJ12×13
